SR3 Grading Rake

Need a Quote & Information?

Categories: , , Tags: , , , ,

SR3 Rake - For Landscapers & Contractors

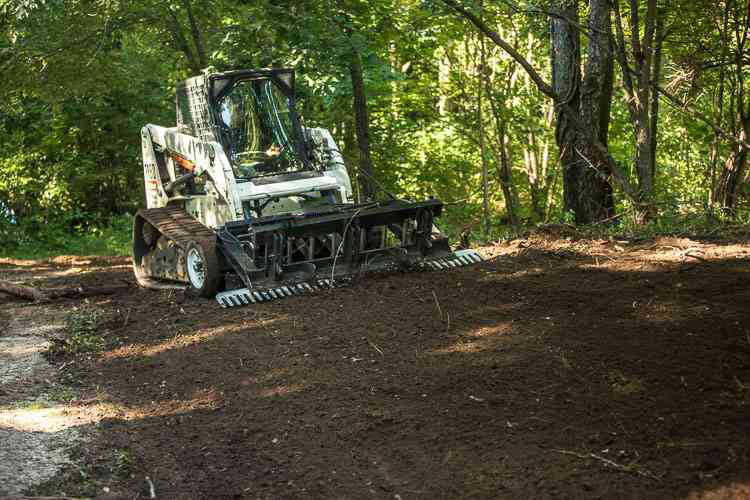

The SR3 is a commercial-grade seedbed preparation attachment for skid steer. This amazing landscape rake incorporates an auto leveling blade, hydraulic scarifiers and a finishing rake to properly prepare the perfect seedbed, free of compaction, for excellent seed-to-soil contact and accelerated germination. Unlike a power rake, the SR3 has no rotary components so it can take abuse like no other soil prep attachment can. Possibly the greatest benefit of the SR3 is ease of use. With clear sight lines to the front edge of the tool the operator can have confidence even along concrete edges, irrigation heads, landscaping, and buildings. Even an inexperienced operator can quickly become an expert SR3 operator as it can be operated with the loader arms in "Float". The SR3 has the capability to complete both light rough grading and finish grading jobs more quickly and easily than ever before. Forward and reverse grading and raking operation. Loosens soil up to 7.6cm(standard), adjustable to 12.7cm. 2.3m wide.

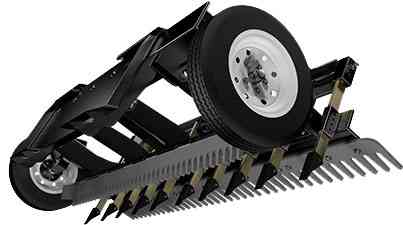

SR3 Overview
Time Saver

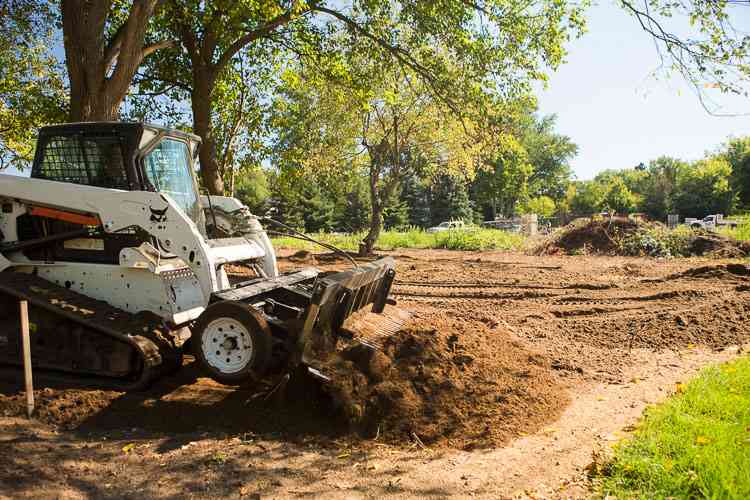

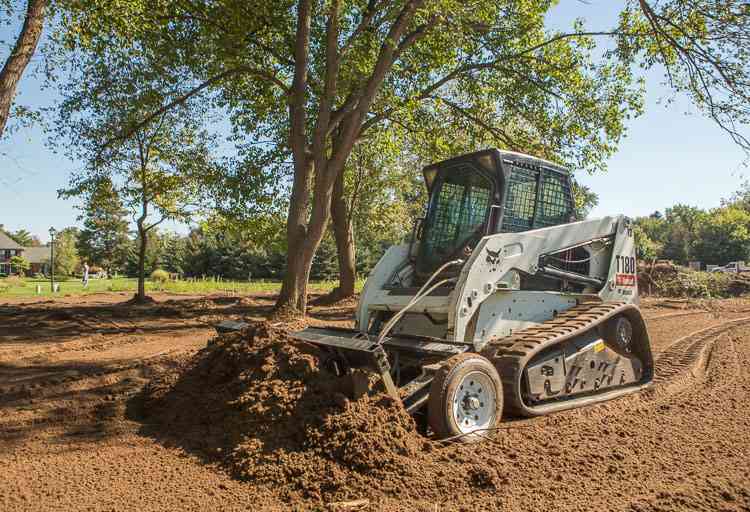

With an easy-to-set depth control in the gauge and float wheels, any operator can quickly clear, grade, and finish the toughest of jobs. Sift out rocks, level, and loosen when pulling the SR3; push large amounts of material and feather loose soil up against an edge when pushing forward!

Less Downtime & Handwork

The ability of the SR3 to finish a job from overgrown land to a seedready finish drastically reduces time spent changing tools, unloading trailers, reconnecting hydraulics, and more. Its ability to tackle every job-from spreading large mounds of topsoil & removing debris to feathering against a tight edge-greatly reduces the need for other tools and handwork. Watch your profits soar: complete more jobs each day with fewer staff on site!

For Any Crew

Matchless in the landscape industry, the float & gauge wheels on the SR3 let any operator achieve quick, easy, and professional results. Furthermore, the low-profile design was engineered to provide maximum visibility of ground-engaging components (minimizing guess-work). Assign any crew with confidence!

Soil Decompaction

SR1 Grading Rake - Decompacted Soil

At ABI Attachments we know that there is nothing more important to preparing a proper seedbed than getting rid of the compaction of the soil. A de-compacted soil allows water and air to reach the roots of the seed, giving those roots the ability to anchor deep creating a stable and healthy turf.

Scott Holmes and Kevin Keigley with ABI Attachments discuss the differences between each Skid Steer Rake and which one would be right for you.

Trent Gillam with Henderson Turf Farm talks with Scott Holmes with ABI Attachments about the benefits of the TR3 Command Series and the impact it has on seedbed germination.

Patent Pending

-

Ground-Engaging Components

3

H.P. Rating

40 - 100

Limited Warranty

60-month

The SR3 combines the best features of a skid steer attached Box Blade, Landscape Rake, Pulverizer, Land Planner, & Scarifier all into one innovative design. This eliminates the need to switch out attachments and delivers vastly superior results, significantly faster than ever before. In comparison to a power rake, the SR3’s features provide significantly more soil compaction relief, speed of operation, and grading capability without downtime due to extensive maintenance.

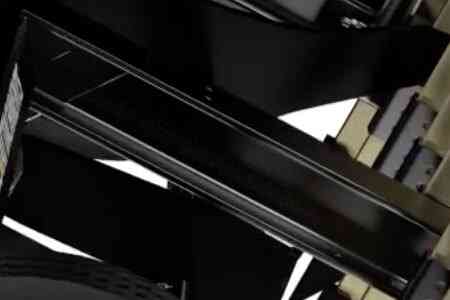

SR3 Grading Rake I Beam

I-Beam Design

Fully welded for the utmost strength and longevity. Our Command Series tools are designed to work under tough conditions all day, every day.

SR3 Grading Rake

Innovative 3-In-One Design

Designed to operate at an angle, the SR3 is a wheel-supported attachment with 3 ground-engaging components that work together to create the ideal seedbed.

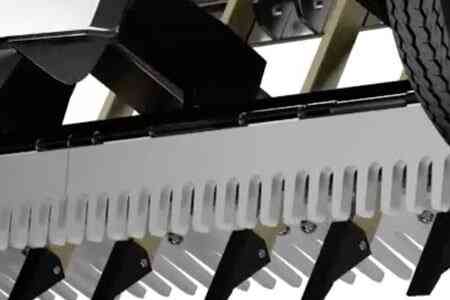

SR3 Grading Rake Rock Teeth

Leveling Blade w/ Hinged Rock Teeth

Pulled backward, this blade floats to equalize high & low areas without damaging the ground, while rock teeth collect surface debris. It can also lock for aggressive grading. Pushed forward, the blade & teeth hinge up to eliminate resistance.

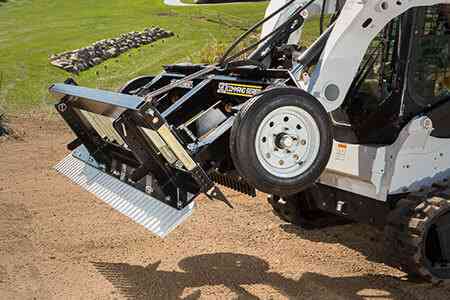

SR3 Grading Rake Wheel

40.6cm Float & Gauge Tires

40.6cm float & gauge tires gauge working depth and allow the skid steer to work in the “float” position to keep the tool consistently engaged with the ground even when operating on rough terrain! Foam-filled for never-flat durability.

SR3 Grading Rake

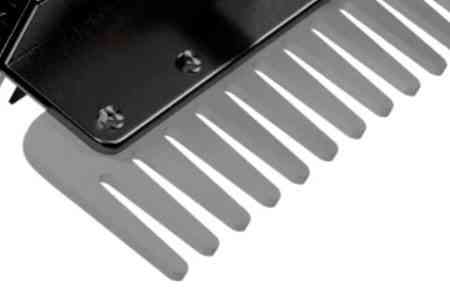

Heavy-Duty Steel Finish Rake

The heavy-duty steel finish rake gives the SR3 both finesse and strength. Push forward to slice vegetation, clear debris, and spread top soil. Pull backward to pulverize dirt clods and leave an ideal seed- or sod-ready finish. Replaceable in 0.3m sections. 1.9cm-thick laser-cut hardened-steel.

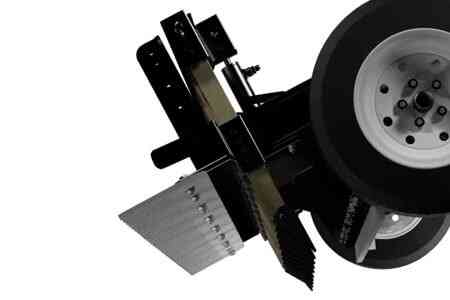

SR3 Grading Rake Hydraulic

Hydraulic Scarifiers

Hydraulic scarifiers loosen the ground from 0-12.7cm with on-the-fly hydraulic depth control. These cast teeth penetrate the hardest of conditions and bolt-on tips keep maintenance costs low.


Can’t find the resource you’re looking for? Let us help! Our support team can be reached at 877-788-7253

The SR3 is a commercial-grade seedbed preparation attachment for skid steer. This amazing landscape rake incorporates an auto leveling blade, hydraulic scarifiers and a finishing rake to properly prepare the perfect seedbed, free of compaction, for excellent seed-to-soil contact and accelerated germination. Unlike a power rake, the SR3 has no rotary components so it can take abuse like no other soil prep attachment can. Possibly the greatest benefit of the SR3 is ease of use. With clear sight lines to the front edge of the tool the operator can have confidence even along concrete edges, irrigation heads, landscaping, and buildings. Even an inexperienced operator can quickly become an expert SR3 operator as it can be operated with the loader arms in "Float". The SR3 has the capability to complete both light rough grading and finish grading jobs more quickly and easily than ever before. Forward and reverse grading and raking operation. Loosens soil up to 7.6cm(standard), adjustable to 12.7cm. 2.3m wide.
The SR3 is a commercial-grade seedbed preparation attachment for skid steer. This amazing landscape rake incorporates an auto leveling blade, hydraulic scarifiers and a finishing rake to properly prepare the perfect seedbed, free of compaction, for excellent seed-to-soil contact and accelerated germination. Unlike a power rake, the SR3 has no rotary components so it can take abuse like no other soil prep attachment can. Possibly the greatest benefit of the SR3 is ease of use. With clear sight lines to the front edge of the tool the operator can have confidence even along concrete edges, irrigation heads, landscaping, and buildings. Even an inexperienced operator can quickly become an expert SR3 operator as it can be operated with the loader arms in "Float". The SR3 has the capability to complete both light rough grading and finish grading jobs more quickly and easily than ever before. Forward and reverse grading and raking operation. Loosens soil up to 7.6cm(standard), adjustable to 12.7cm. 2.3m wide.
The SR3 is a commercial-grade seedbed preparation attachment for skid steer. This amazing landscape rake incorporates an auto leveling blade, hydraulic scarifiers and a finishing rake to properly prepare the perfect seedbed, free of compaction, for excellent seed-to-soil contact and accelerated germination. Unlike a power rake, the SR3 has no rotary components so it can take abuse like no other soil prep attachment can. Possibly the greatest benefit of the SR3 is ease of use. With clear sight lines to the front edge of the tool the operator can have confidence even along concrete edges, irrigation heads, landscaping, and buildings. Even an inexperienced operator can quickly become an expert SR3 operator as it can be operated with the loader arms in "Float". The SR3 has the capability to complete both light rough grading and finish grading jobs more quickly and easily than ever before. Forward and reverse grading and raking operation. Loosens soil up to 7.6cm(standard), adjustable to 12.7cm. 2.3m wide.

5 reviews for SR3 Grading Rake

4.9
Based on 15 reviews
5 star
86
86%
4 star
13
13%
3 star
0%
2 star
0%
1 star
0%
Showing 2 of 15 reviews (4 star). See all 15 reviews
  1. Ryan D.

    Great for leveling and grading rough surfaces, especially where there is existing sod or vegetation. Takes a little time for operator to learn ins and outs of attachment for smooth final grades. Built to last.

    (0)(0)
Add a review

Your email address will not be published. Required fields are marked *

You may also like…

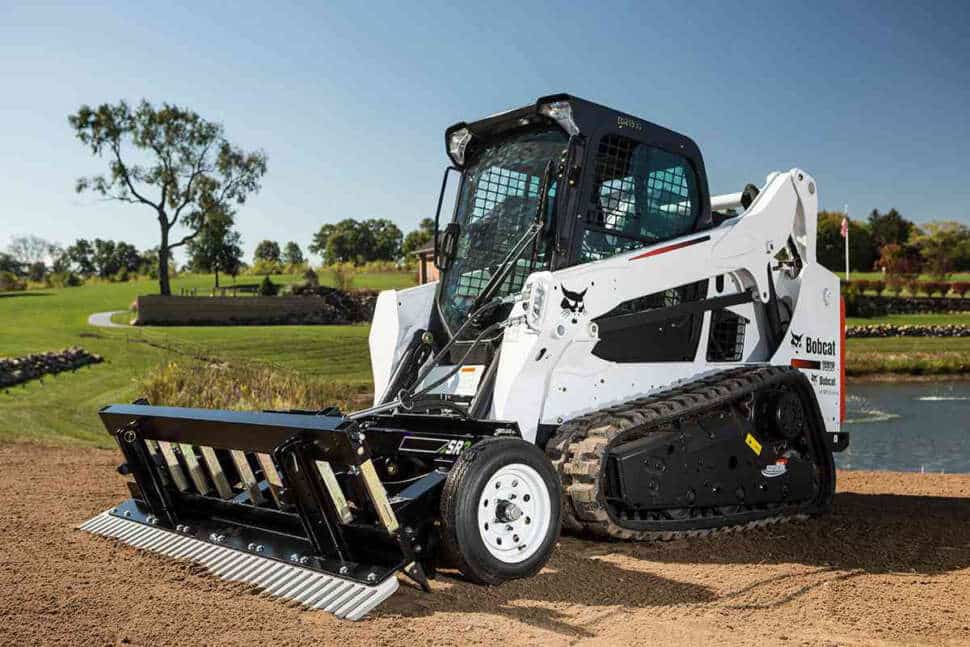

SR1 Grading Rake
