Built in Lancaster Pennsylvania, by highly skilled craftsman with decades of spreader building experience, these spreaders are crafted for daily farm-use-conditions and made of the most durable components we know of. Materials such as grade-5 bolts, greaseable bearings, oil-impregnated bronze bushings, heavy-duty size 60 roller chain (nearly 1″ wide), T-Rod apron chain, and hardened sprockets ensure longevity. You can judge a spreaders materials and components quality by its overall unit weight, the heavier the better. The ABI spreader weighs nearly 1/3 more than equivalently sized competitors spreaders. Now that is tangible quality you can feel!
4-Speed Variable Flow Control

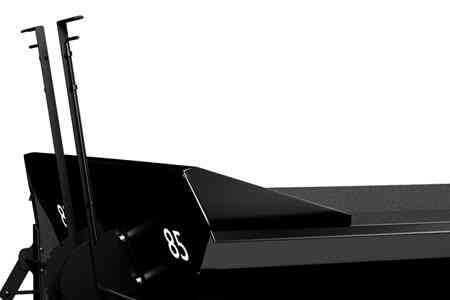

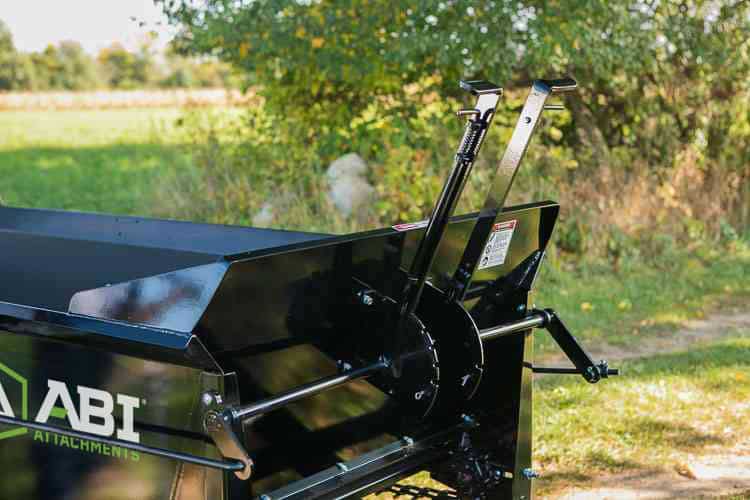

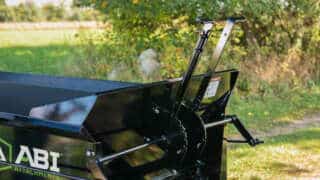

Unlike most competitors, all ABI Classic Manure spreaders feature the ability to control the flow rate of manure being applied to the ground with 4 different speeds. Flow control is accomplished by speeding up or slowing down the apron web, that feeds manure to the back beaters, independently of ground speed. The speeds are adjusted via the front lever and enables the operator to either empty the manure as fast as possible or apply controlled amounts of manure to specific areas to maximize its’ fertilizer value. Variable flow control also enables this spreader to handle a wider range of manure, as manure consistency can change depending on manure type, bedding material, stage of decomposition, and weather, without causing damage or additional maintenance to the spreader. And finally having 4-speeds encourage an eco-balanced pasture by enabling a slow manure feed rate and high beater spin rate for fine shredding and spreading.

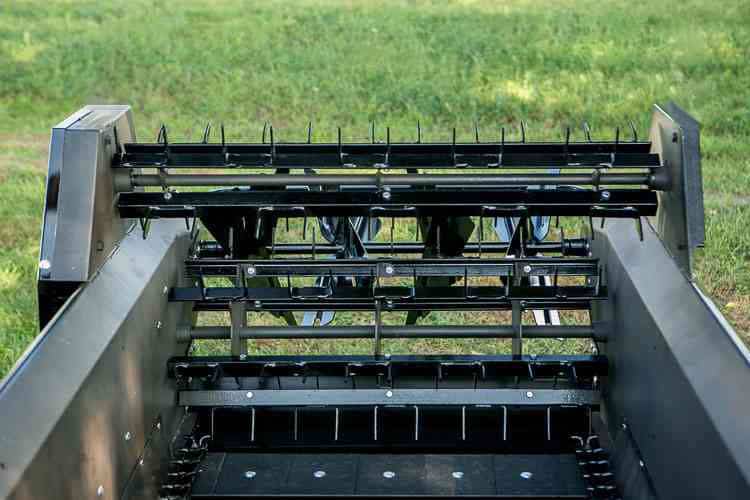

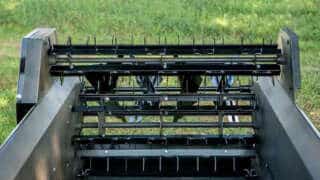

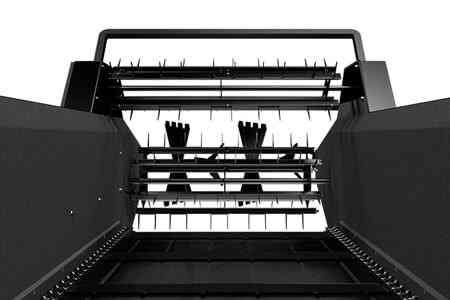

Shreds & Then Spreads - 3 Beater Bars

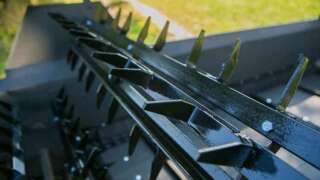

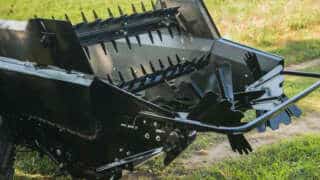

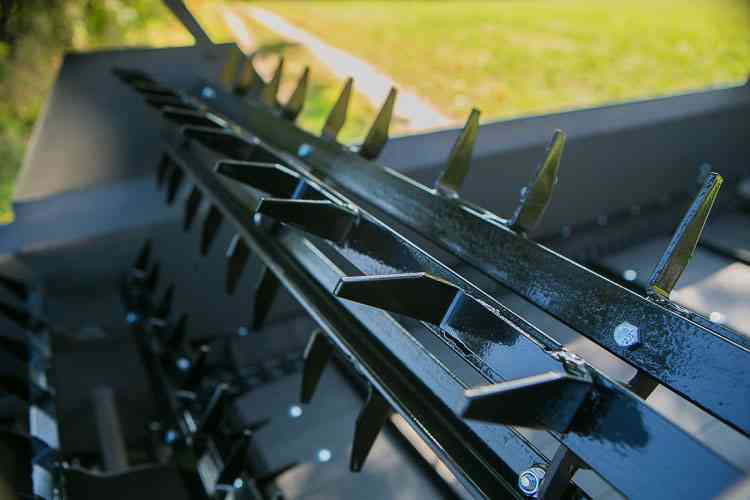

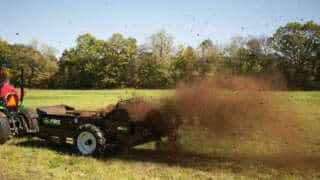

The 85 cu. ft. model is equipped standard with 3 beater bars. Two designed to shred manure and the other designed to spread it evenly. The shredder beaters, with 100 shredding blades, is geared slower than the wide spread beater to maximize shredding power. The spreading beater is expertly designed to further breakdown the manure and evenly distribute it on the ground. The 85 cu. ft. manure spreader has 8 large wide spread paddles. Shredding before spreading and then evenly spreading over a wide swath, exposes more manure surface to sunlight which allows it to dry and decompose far more quickly. Owning an ABI manure spreader that both shreds manure before it spreads and also controls the amount of manure being applied to the ground, enables the horse owner to help maintain an eco-balanced pasture. An eco-balanced pasture can help reduce colic, increase pasture turn efficiency rates, help produce more vigorous grass growth, and reduce odor & flies around the farm.
Advanced Ground Drive System

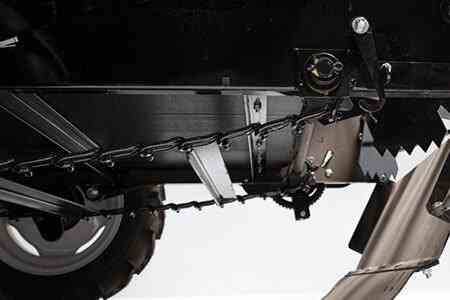

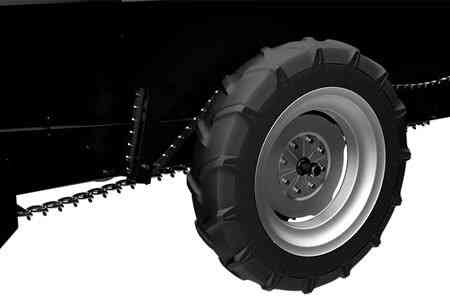

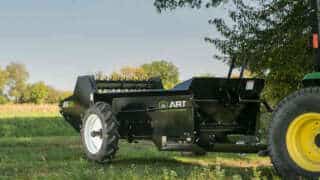

Unlike many other spreaders, the ABI Manure Spreader provides constant power to the apron chain and beater bars via an advanced ground drive system, even during tight turns on rough pastures. The right wheel drives the apron chain and the left wheel drives the beater bars (in relationship to the tow vehicle), however both wheels also work in unison to maximize traction and prevent the apron and beaters from running at incompatible speeds, preventing damage. This works similar in concept to a locking differential on a truck and forces both wheels to turn in unison, regardless of the traction (or lack thereof) available to either wheel individually. In addition to a heavy unit weight, this systems allows ABI spreaders to spread in most any condition, even on frozen ground. The ratcheting hubs allow the wheels to move in reverse, without turning the apron or beaters, protecting moving parts from damage, preventing the chain from jumping sprockets, and preventing manure from being thrown onto the tow vehicle and operator!

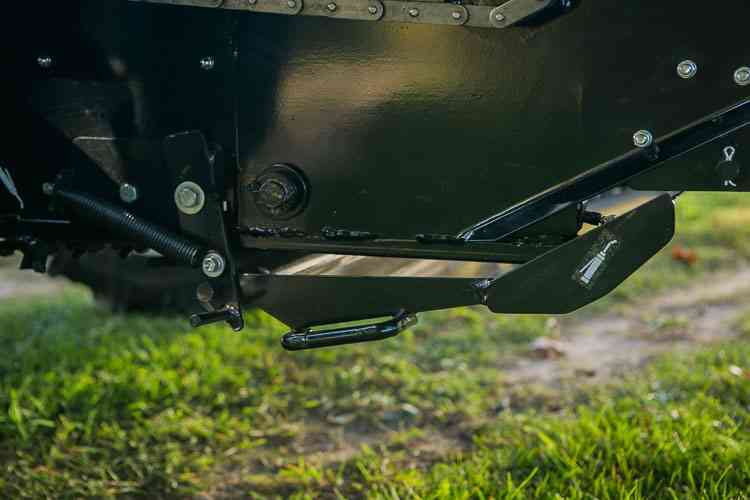

For those that leave nothing to chance, the Fines Pan prevents small fines of manure from falling off the back of the spreader and to the ground without first being processed by the beater bar. The pan has a release for easy cleaning and is replaceable. The Fines Pan can also assist in preventing manure from falling out the back of the spreader during loading and transport. A fines pan is highly desired when spreading dry material such a saw dust bedding, wood chip bedding, or dry compost; any type of material with small fines.
10 Gauge Steel
We start with extremely thick 10 gauge corrosion-resistant COR-TEN steel construction. Unlike most spreaders, the Classic Spreader is a longterm “one-time” investment which has a fully welded box frame, using thicker steel, for worry-free durability. COR-TEN steel may be exposed to the elements, even unfinished, and rust will not perforate it for decades. With COR-TEN steel, you get the longevity and strength required to build a world-class spreader, without the unneeded additional expense and structural weakness of stainless steel.
Protective Body Liner
The inside of the spreader body is coated with a Coal-Tar-Epoxy liner. The Coal-Tar-Epoxy liner adds an industrial seal to protect from the severe corrosive effects of urine filled manure. Coal-Tar-Epoxies are commonly used to line underground sewage tanks and pipelines, and even protect the hulls of barges in salt water.

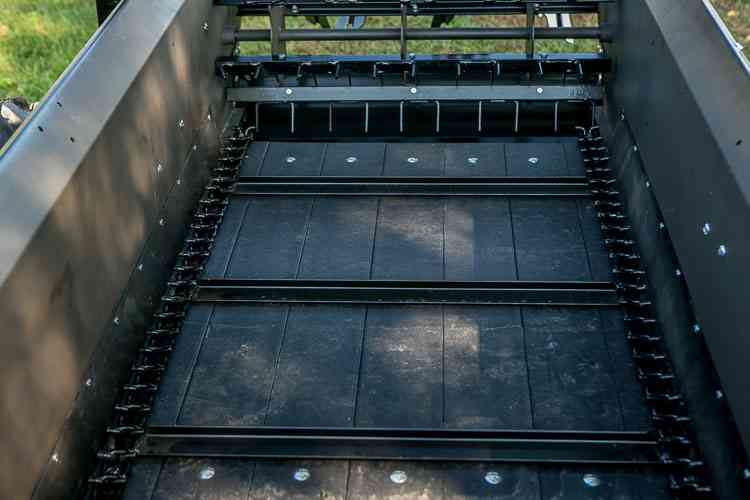

Lifetime Poly-Lumber Flooring

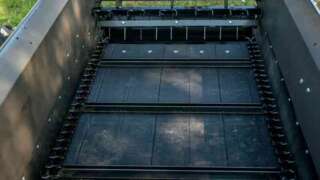

The bottom flooring is constructed of extremely thick tongue-and-groove polyvinyl lumber that will never rot, rust, or need replacing. Even better yet, the tongue-and-groove construction prohibits the individual poly-boards from warping, preventing excessive wear or damage to the apron web. This is a premium maintenance free flooring that will last and comes standard with a limited lifetime warranty.
Superior-Quality Craftsmanship & Components
Built in Lancaster Pennsylvania, by highly skilled craftsman with decades of spreader building experience, these spreaders are crafted for daily farm-use-conditions and made of the most durable components we know of. Materials such as grade-5 bolts, greaseable bearings, oil-impregnated bronze bushings, heavy-duty size 60 roller chain (nearly 2.54cm wide), T-Rod apron chain, and hardened sprockets ensure longevity. You can judge a spreaders materials and components quality by its overall unit weight, the heavier the better. The ABI spreader weighs nearly 1/3 more than equivalently sized competitors spreaders. Now that is tangible quality you can feel!
Rust-Oleum Paint

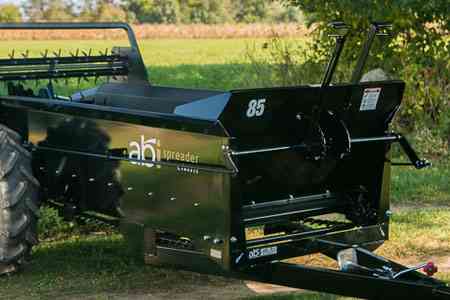

All steel components are sand-blasted before painting to prime for perfect adhesion. A special Rust-Oleum “Stops-Rust” black gloss paint, which has a long history of preventing rust on steel in acidic environments, is then applied. Unlike powder-coating, this paint is easy to repair and touch-up and moisture cannot get behind it which eliminates the possibility of rust forming under the finish layer.
Capacity
| Classic Spreader | 85ft3 |
| Heaped Capacity | 85 cu ft |
| Struck Capacity | 47 cu ft |
| # of Horses | Up To 15 |
Features
| Classic Spreader | 85ft3 |
| Platform | Commercial Ag |
| Ground Driven: | Yes |
| Steel Type: | COR-TEN |
| Steel of Gauge: | 10 |
| # of Beaters: | 3 |
| In-line Shreddding Beater: | Yes |
| # of Spreading Paddles: | 8 |
| # of Shredding Blades: | 100 |
| Flow Control Speeds: | 4 |
| Speed Adjustment: | Lever |
| Spray Shield: | - |
| Bed Liner: | Yes |
| Poly Lumber Floor: | Yes |
| Jack Stand: | Skid Plate |
| Tires | Ag Traction |
| Ratcheting Hubs: | Yes |
Min, Vehicle Requirements
| Classic Spreader | 85ft3 |
| Tractor Type: | Compact & Utility |
| Min. Horsepower: | 25 hp |
| Min. Hydraulic Pump: | - |
| Min. CC: | 950cc (4WD) |
Weights
| Classic Spreader | 85ft3 |
| Unit Weight: | 2,095 lbs |
| Shipping Weight: | 2,095 lbs |
| Empty Tongue Weight: | 150 lbs |

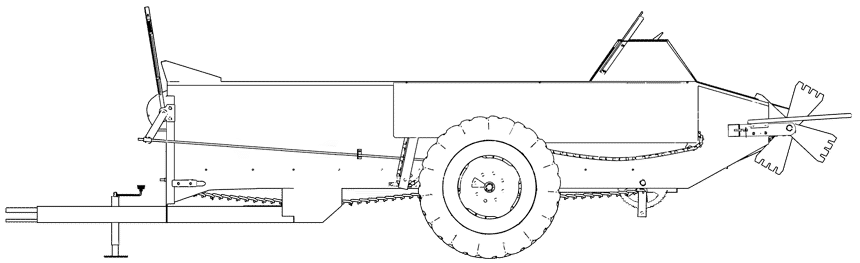

Unit Dimensions
| Classic Spreader | 85ft3 |
| Total Length: | 200" (16' 8") |
| Total Width: | 72" (6') |
| Total Height: | 59" (4' 11") |
| Box Length: | 100" (8' 4") |
| Box Width: | 40" (3' 4") |
| Box Height: | 20" (1' 8") |
| Box Flared Width: | 45" (3' 9") |
| Loading Height: | 43" (3' 7") |
Warranty
| Classic Spreader | 85ft3 |
| Mechanical | 3 Year |
| Workmanship (Farm & Ranch): | 10 Year |
| Workmanship (Commercial): | 3 Year |
| Poly Lumber Floor: | Lifetime |
Attributes
| Ground Driven Manure Spreader, 85 cu ft |
| Tow Vehicle | Compact Tractor, Utility Tractor |
| Product Type | Manure Spreaders |
| Connection | Pin Hitch / Drawbar |
| Size | |
| Other Attributes | |
| Market | |

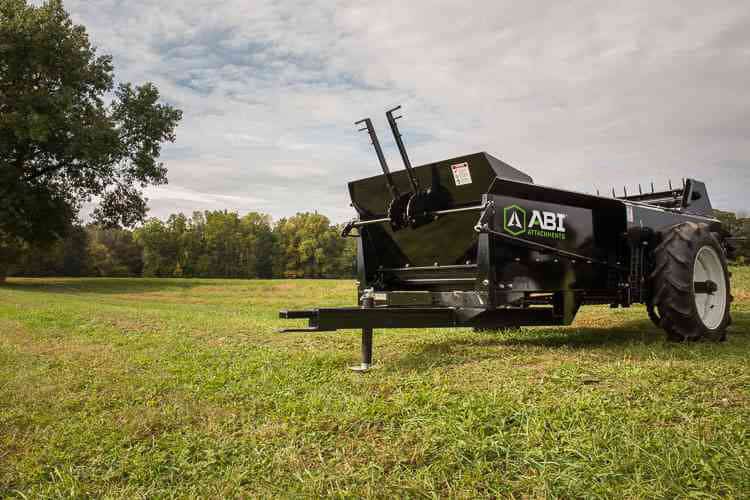

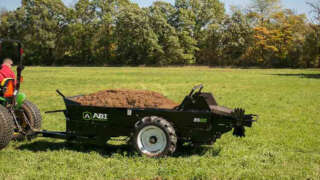

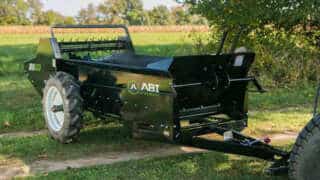

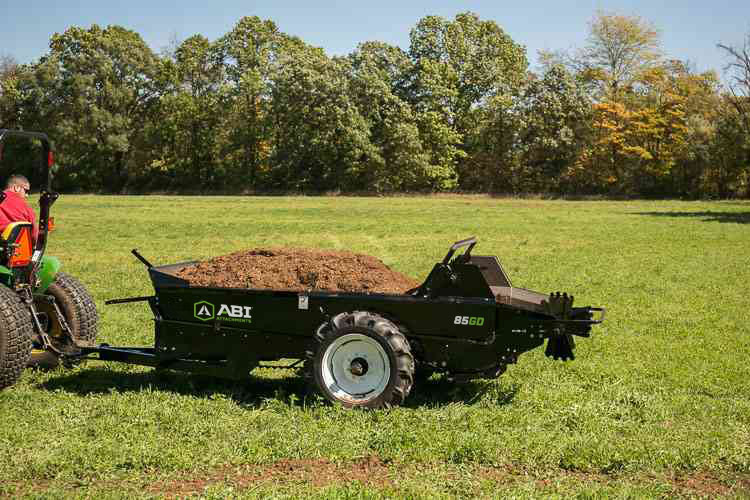

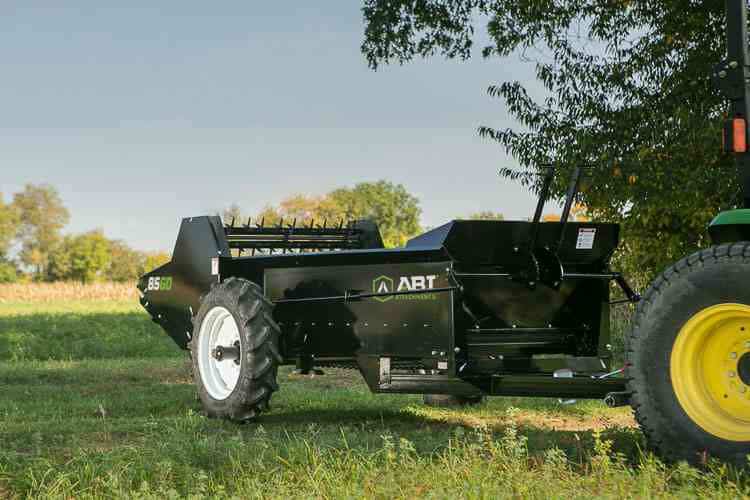

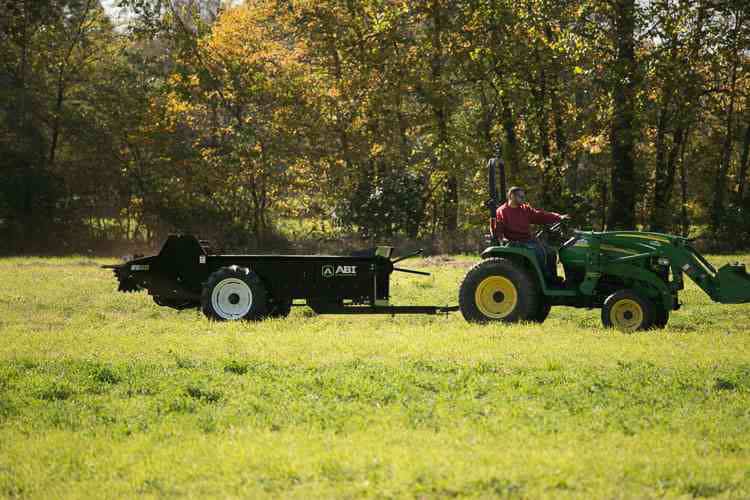

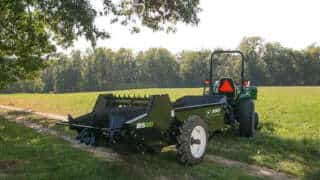

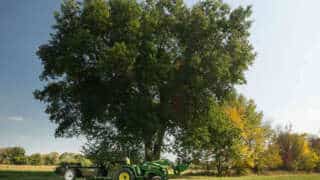

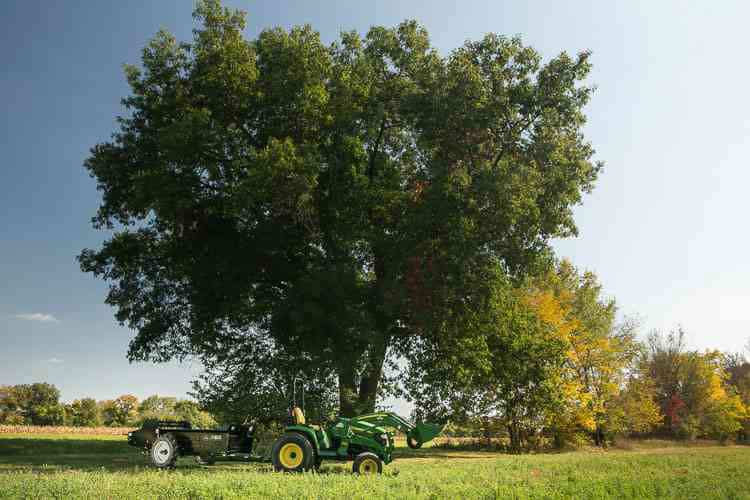

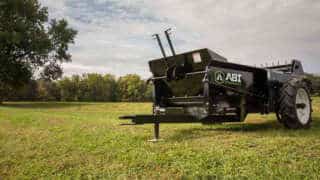

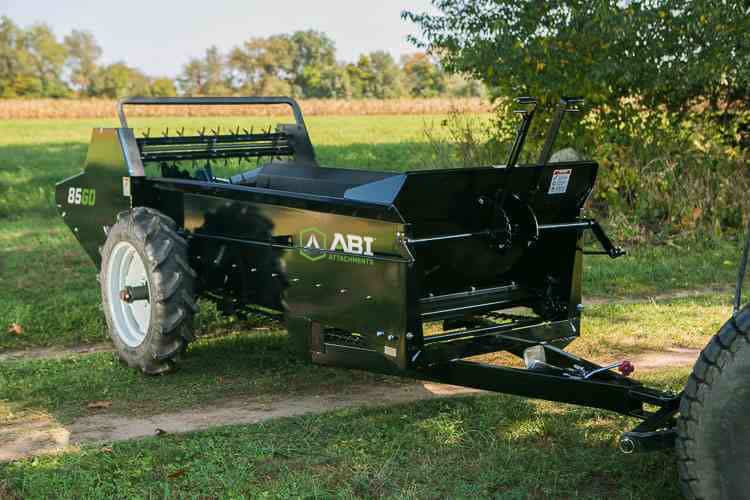

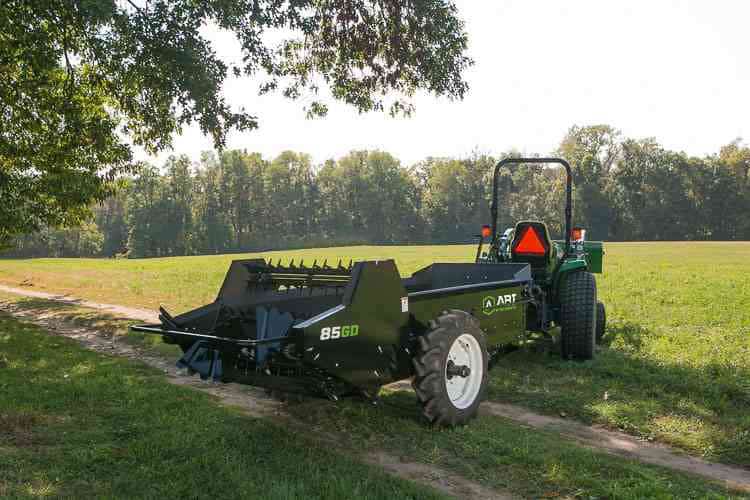

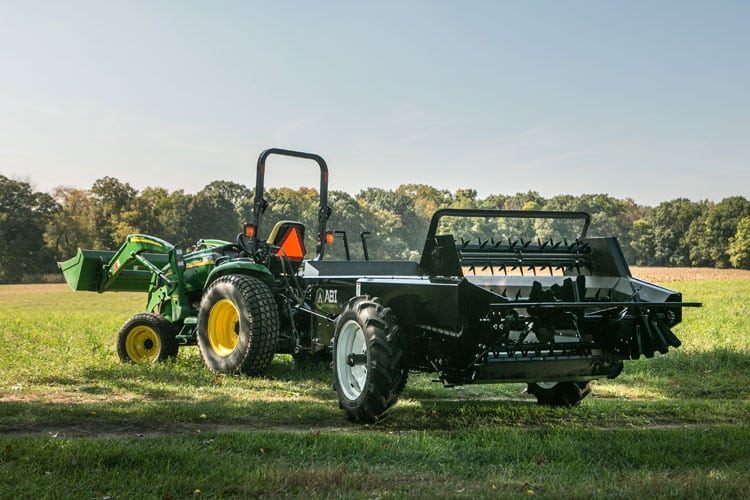

ABI Classic Spreaders are the uncompromising and most capable compact manure spreaders available. This 85 cuft 4-speed ground driven spreaders can be pulled with a very large UTV (950cc+ 4WD) or compact tractor and is ideal for farms with up to 15 horses. With ease of use, serviceability, and safety already built-in by design, the Classic Spreader offers standard features such as 10-gauge COR-TEN steel, fully welded box frame construction, 4-speed variable flow control, 3 beaters for both shredding and spreading, ratcheting hubs, a protective box liner, and poly-lumber flooring. Offered with three assurances in writing. A money-back-guarantee, a 3-year mechanical and construction warranty, and a lifetime poly-lumber flooring warranty. From the ground up, the ABI Classic Spreader is truly a superior spreader!
ABI Classic Spreaders are the uncompromising and most capable compact manure spreaders available. This 85 cuft 4-speed ground driven spreaders can be pulled with a very large UTV (950cc+ 4WD) or compact tractor and is ideal for farms with up to 15 horses. With ease of use, serviceability, and safety already built-in by design, the Classic Spreader offers standard features such as 10-gauge COR-TEN steel, fully welded box frame construction, 4-speed variable flow control, 3 beaters for both shredding and spreading, ratcheting hubs, a protective box liner, and poly-lumber flooring. Offered with three assurances in writing. A money-back-guarantee, a 3-year mechanical and construction warranty, and a lifetime poly-lumber flooring warranty. From the ground up, the ABI Classic Spreader is truly a superior spreader!
